Features

Specifications

Applicable Industries: Construction WorksÂ

Showroom Location: None

Condition: New

Machine Type: Glass Laminating Machine

Production Capacity: 36-107 Sq.m Per 2hrs

Voltage: 380V 50HZ/ 220V 50HZ

Power: 33-73 Kw

Weight: 4300 Kg

Warranty: 1 Year

Key Selling Points: High Productivity

Glass Thickness: 3-19mm

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Marketing Type: Newest Product

Warranty Of Core Components: 1 Year

Core Components: Motor, PLC, Pump

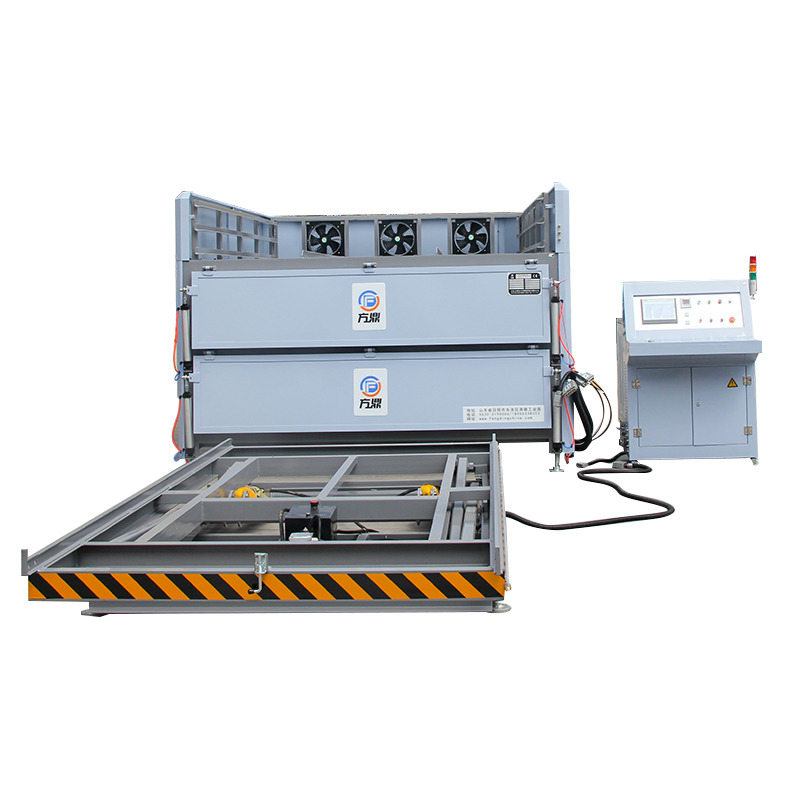

Product Name: Glass Laminating Furnace

Application: Architectual Glass

Advantage: Easy Operate Low Investment

Max Glass Size: 2440*3660mm

Min Glass Size: 350*350mm

Control System: PLC

Heating Method: Radiation Heating

Total Weight: 4300KG

Power Supply: 3phase 380V/50Hz

Package: Plywood Case

Basic Infomation

Payment & Shipping Terms

Packaging Details: Wrapped with moisture proof film Wooden case suitbable for container loading

Supply Ability: 30 Set/Sets per Month

Product Description

Specification

item	value
Applicable Industries	Construction works
Showroom Location	None
Condition	New
Machine Type	Glass Laminating Machine
Production Capacity	36-107 sq.m per 2hrs
Place of Origin	China
	Shandong
Brand Name	FANGDING
Voltage	380V 50HZ/ 220V 50HZ
Power	33-73 kw
Weight	4300kg
Warranty	1 Year
Key Selling Points	High Productivity
Glass Thickness	3-19mm
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	Newest product
Warranty of core components	1 Year
Core Components	Motor, PLC, Pump
Product name	glass laminating Furnace
Application	Architectual Glass
Advantage	Easy Operate Low Investment
Max glass size	2440*3660mm
Min glass size	350*350mm
Control system	PLC
Heating method	Radiation Heating
Total weight	4300KG
Power Supply	3phase 380V/50Hz
Package	Plywood Case

PLC Control Cabinet

The PLC equipped with Siemens brand smart series,together with a remote controller ,easy to operate ,all the needed data can be set on the touchable screen,the programming system is self-developed by our own electrical engineer,which is highly matched with all the functions

Heating System.

. Heating by nichrome heating tubes, packed by stainless . 4 layers be divided into Area A and Area B. Each area has the same pieces. the heating tubes are evenly distributed on the top and bottom,more closely distributed near the door. There are several thermocouples.equipped with power regulators working independently. the front heating tubes are connected with one power regulator, and the rear heating tubes are connected with another one ,, so the temperature is relatively uniform. the temperature difference in the furnace will not exceed 3 ℃.

Vacuum System.

We adopt wind-cooling vacuum pump, self-developed patent product , working stable. It could continuously work for 24 hours. Vacuum rate reach up to -0.09 — -0.098Mpa. Equipped a buffer tank with each pump, to prevent the air go into the silicone bag when suddenly power off. And we also equipped water vapor separation device with air filter and oil filter, it can separate the water/ air and water/oil to longer the service life of the pump.

Automatic lifting platform.

1. Equipped with wireless Remoter ,one-click precision control,It can positioning to each layer very accurately, save time and labor. 2. The lifting function is hydro-pneumatic controlled, more durable. The width of the lifting table is 1.8m, the bearing force is higher, and it is stable and won’t spring back. 3. A latch device is added between the tray and lifting platform,to ensure the trays won’t sliding down during the operating,more convenient and safe.

Packing & Delivery

Wrapped with moisture proof film Wooden case suitbable for container loading

Company Profile

Fangding Technology Co., Ltd is a high-tech enterprise which was founded in October 2003, located in Taoluo industrial park , Donggang district, Rizhao city, covering an area of more than 20,000 square meters, with a registered capital of 100 million yuan,specializing in R&D、production and sales &service of the laminated glass machinery and the interlayer films,the The main products are EVA laminated glass machine、Heat Soak Furnace、 Smart PVB glass laminating line and EVA、TPU、SGP films. At present, the company has D1, D2 pressure vessel production license, has obtained the ISO 9001 quality management system certification,the products have obtained the European Union CE certification, Canada CSA certification and Germany TUV certification,it has the independent export permission and successively awarded the high-tech enterprise, gazelle enterprise of Shandong province, famous brand in shandong province, and others more than 30 honorary title. The company participated in the world glass industry well-known exhibitions every year, such as Germany Dusseldorf international glass industry exhibition, China international glass industry technology exhibition, China international window and curtain wall exhibition, Italy Milan international glass industry exhibition, the Middle East (Dubai) international glass exhibition, the United States Atlanta international window and curtain wall exhibition and other exhibitions. During the exhibition ,through the on-site processing of the laminated glass ,Fangding presented its unique design style and manufacturing process to the customers! The company has a large number of skilled senior technical personnel and experienced management personnel, established cooperation with many scientific research institutions ,has been committing to provide full set of solutions of the glass laminating for the deep-processing enterprises ;the company has reached co-operations with many global top 500companies. In the international market, the products has been exported to Asia, Europe, America and other more than 60 countries and regions .Be responsible for the customers and develop together with them!It has laid a solid foundation for enterprises to compete on the international stage.the company has won the trust and praise from the customers all over the world for years. Looking at the world and advancing with the times, we focus on the details and refine the quality. We gather bits and pieces to chase the future. Fangding Technology uses the passion of innovation to ignite the development of high-end technology enterprises of China.

FAQ

1. who are we?
We are based in Shandong, China, start from 2003,sell to Domestic Market(41.00%),Western Europe(7.00%),Southeast Asia(7.00%),Eastern Europe(6.00%),Eastern Asia(6.00%),Southern Europe(6.00%),South America(6.00%),Mid East(5.00%),North America(5.00%),Northern Europe(3.00%),Oceania(3.00%),South Asia(2.00%),Africa(2.00%),Central America(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Laminated glass machine,glass laminting machine,glass laminating furnace,EVA film,glass laminating equipment

4. why should you buy from us not from other suppliers?
Laminating machine Double independent system: The heating cabinet is divided into two separate chambers, the upper two layers and the lower two layers can work independently, saving 50% energy, can laminate two different kinds of glass at the same time.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
