Architecture Success Two Layer Glass Laminated Float Glass Curing Eva Furnace Glass

Architecture Success Two Layer Glass Laminated Float Glass Curing Eva Furnace Glass
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Payment & Shipping Terms
Product Description
Product Description
* Full-service solution-equipment, films & technical advice
* Higher Efficiency & lower production cost
* PID output ensure an accurate temperature.
Detailed Images

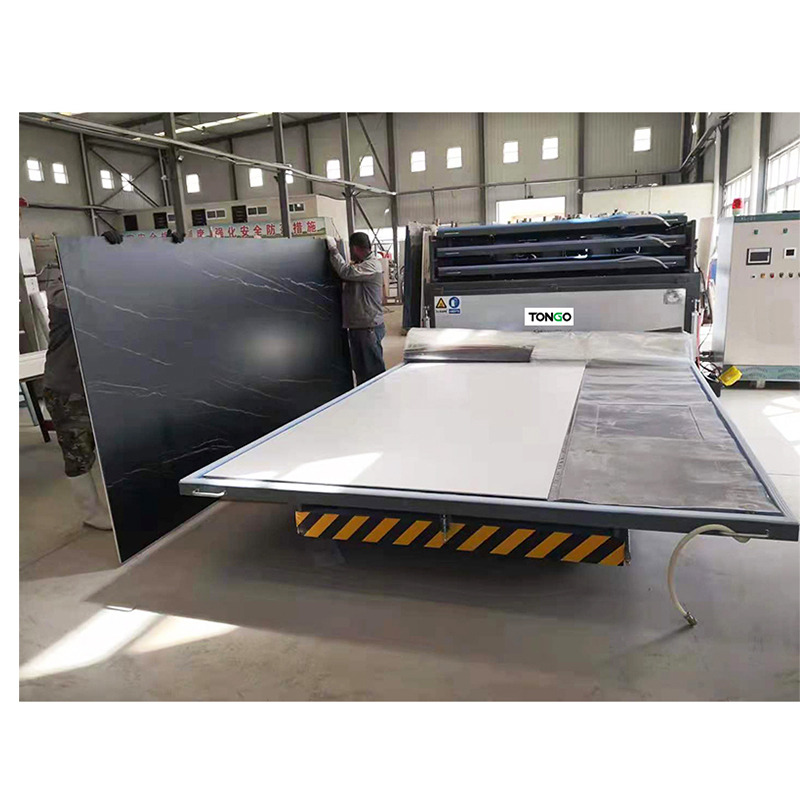

Detail of our machine
We adopt Siemens PLC temperature control module and intelligent PID control system,ensure that the temperature difference inside the furnace are within 3 degree.
Energy saving control:Our machine are equipped with Tongo OEM precise power regulator,adjust the output power through PID calculation.automatically calculate and adjust.This way can save 50% energy than similar product.
High quality steel with more than 8mm.The extra wire connection ensure easy maintenance.
Air circulation system:High power turbo blower,there are four air ducts,up and down,left and right,the air duct can be adjusted up and down.so that the hot air in the furnace can be fully circulated without any blind spot.avoid any excessive temperature difference.
we adopt high temperature resistant vacuum pump with Germany technology.The
vacuum rate reach up to -0.095--0.101mpa.Equipped with vacuum buffer tank, even in case of interruption of electricity supply, the tank could ensure vacuum for silicone bag and make sure high product yield. Panasonic vacuum gauge with high quality.
Product Presentation
Model Name
laminated glass machine 2/4 layers
Machine Frame
100*100*10mm hot dip galvanized Angle steel
Rated Power
16-30KW
Processing glass size
Max:2500*4500mm/3660*2440mm
Max glass thickness
60mm
Floor Space
4000*8500mm
Working Temperature
90--140 degree
Applications:
1. Buildings' window and door
2. Sightseeing lift
3. Glass/Curtain wall
4. Interior decoration
5. Hotel, KTV, Pub, Beauty salon, Hospital, Villa, etc.
6. Shower room
7. kitchen & bath decoration
8. Furniture
9. Automobile Windshield, etc
Application
Bending glass lamination
PDLC film Lamination
Bulletproof glass lamination
Silk lamination
Magic film lamination
Glass curtain wall
Certificate
Related Products
Company Introduction
Rizhao Tongo Glass Machinery is a professional designer and manufacture during glass industries.Including glass laminating machine,EVA film and other glass processing machinery.such as Such as glass edging machine,glass washing machine,glass laminating machine ,glass manipulator etc.
In the glass machine field,our company have professional technical team who can provide you with professional service and we can update our product for you according to your opinion.We design, develop, and build glass machinery for clients around the world.Through creativity, innovation, and reliability we have become a leader in our industry.Since the majority of our work is referral-based, our success depends on our reputation for excellence. From the first conversation about your project until the day your finished glass machinery installed, our goal is to exceed your expectations.
Quality is our culture,you are warmly welcome to our company for a visit.
Packing&Shipping
The machine will be packed with plywood suitable case and Secure with wire rope.
