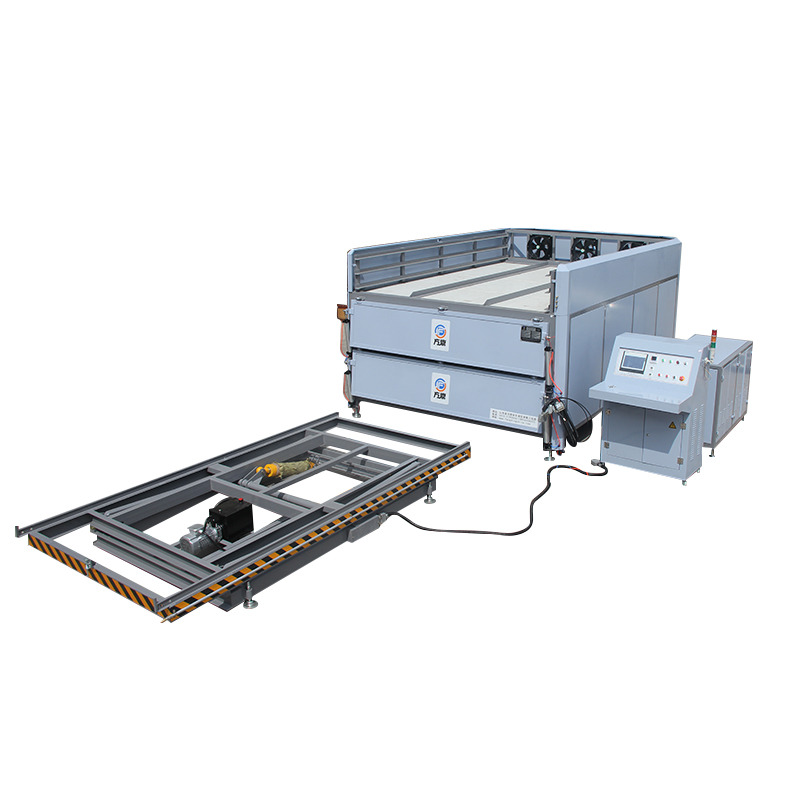

automatic hotels laminated glass machine price without autoclave

Fangding covers an area of 30000 square meters, office area of 4000 square meters, factory 26000 square meters. There are mainly four parts in our company, one office building, one welding workshop,  one assembly workshop and one finished product workshop. We have 96 workers and support staff. Established in 2003, We have got rich experience on producing laminated glass and machines. With a total solution of glass laminating, we are willing to cooperate with friends from all over the world. Fangding is the largest manufacturer of glass laminating machines in China, selling equipment more than 200 sets each year. Our glass laminating machines are sold to more than 68 countries and regions. More than 40 distributors all over the world.
> 14 years' experience manufacturing factory with good reputation.
> 12 national patents of glass laminating equipment technology.
> Our products all approved CE, ISO9001 certificates.
> Supplying whole glass laminating solution, home installation and technical training.

1,Packaging:Protective film on the surface of the machine to prevent damage on the package, then packed with density plate.

 2,Shipping:By land transport or Sea rail combined transport

 0.25mm, 0.38mm, 0.50mm, 0.76mm clear high transparency eva film and Colorful eva film for sale.

Laminated glass produced by Fangding glass laminating machine could be used to places as below:
1) Architecture laminated glass, such as glass curtain wall, awning laminated glass, bulletproof laminated glass, glass stairs, glass wall, bending tempered laminated glass, handrail.
2) Decorative laminated glass, such as marble laminated glass, cross stitch laminated glass, real flower laminated glass, silk laminated glass, picture laminated glass, photograph laminated glass, colorized laminated glass.
3)New energy laminated glass, such as PDLC laminated glass, solar PV panel laminated glass, LED laminated glass.

PLC control system

1.Using PLC control system, all programs are completed automatically.

2.The heating time and temperature technology are adjusted automatically according to the thickness of the glass, reducing errors.

3.Lightning protection and voltage regulation device, enable 220V - 440V 3-phase power supply.

Heating system

1.Heating element adopts 304 stainless steel heating tube.

2.Carpet heating mode is adopted, the upper and lower synchronizing heat dissipation, acting on the surrounding of the glass, which makes sure the temperature in the furnace rapid and uniform rise.

3. Strong forced convection with the turbo blower ensures the temperature difference in the furnace not exceed 5 degrees.

Vacuum system

1.Adopt German technology to improve the high temperature vacuum pump, vacuum level up to -0.09--- -0.098mpa.

2. The vacuum with oil filter and air filter can avoid the moisture mixed with oil.

3.The vacuum pump equipped with vacuum buffer tank will keep vacuum for 24 hours, even when suddenly electricity interrupt,the vacuum will be kept also.

4.High temperature resistance, high tear resistance silicone bag, the raw material imported from USA, 3mm thickness, stackable glass thickness reaches to 40mm. Can be used for 4000-5000 times.

Automatic hydraulic lifting platform. Can position to each layer accurately, making the process safer and easier.

Q: Could your machines laminate bent tempered laminated glass?

A: Yes. Our machines can laminate large-size bent tempered laminated glass in one step, which is very easy to operate.

Q: How many stages your machines can set?

A: Normally we set 3 stages. It can be customized for you to 5 stages if needed.

Q: When will your machine ready for delivery after our prepayment?

A: Normally within in 30 days.

Q: What about the terms of payment?

A: Normally 30% prepayment, 70% before shipment by T/T. L/C and other terms are also available.

Q: Does you machine have any certifications?

A: Yes, we do. Our machine has got CE/ISO9001/CCC/CSA/PC certificate.

Q: Could the laminated glass used for exterior?

A: Yes. The laminated glass with super clear EVA can be totally used for exterior.

Q: How to operate the machine? Is it difficult?

A: No, our machine is very easy to operate. The machine will work automatically after you set the parameters through the touch screen. We send you operating manual with the machine, we also have video for operation for your reference.
