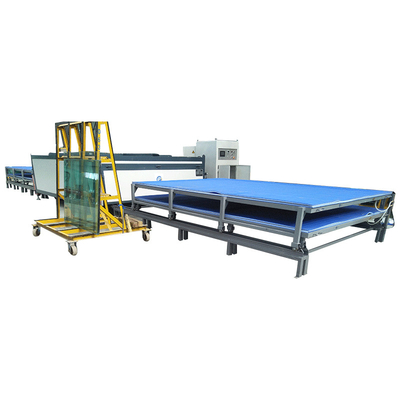

Architectures and Decoration Furnace Glass-to-Glass Laminating Machine for Architectural Glass and Decoration Glass

1 set
MOQ
Architectures and Decoration Furnace Glass-to-Glass Laminating Machine for Architectural Glass and Decoration Glass
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Manufacturing Plant
Showroom Location: None
Condition: New
Machine Type: Glass Laminating Machine
Production Capacity: 20sets/month
Voltage: 380V/50HZ
Power: 39
Dimension(L*W*H): 2980*4600*2150mm
Weight: 2600 Kg
Warranty: 1 Year
Key Selling Points: Easy To Operate
Glass Thickness: 3-19mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2021
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, PLC, Pump
Product Name: Double Layer Glass Making Machine
Model: FD-J-5-2
Max Glass Size: 2440*3660mm
Production Capacity: 212sqm /8 Hrs
Application: Architectures And Decoration Glass
Control System: Siemens PLC
Heating Method: Ni-cr Heating Tubes
Vacuum System: 63 Vacuum Pump
Silicon Bags: 2 Sets With Import Raw Material
Cooling System: Turbo Fan
Basic Infomation
Model Number: FD-J-5-2
Payment & Shipping Terms
Packaging Details: Wrapped with moisture proof film Wooden case suitbable for container loading
Supply Ability: 30 Set/Sets per Month
Product Description
Product Description
Specification
item
value
Product name
Double layer Glass Making Machine
Model
FD-J-5-2
Max glass size
2440*3660mm
production capacity
212sqm /8 hrs
Application
Architectures and decoration glass
Control system
Siemens PLC
Heating method
Ni-cr heating tubes
vacuum system
63 vacuum pump
silicon bags
2 sets with import raw material
cooling system
turbo fan
Details Images
PLC control system
The PLC equipped with Siemens brand smart series,together with a remote controller ,easy to operate ,all the needed data can be set on the touchable screen,the programming system is self-developed by our own electrical engineer,which is highly matched with all the functions .
Heating system
Heating by nichrome heating tubes, packed by stainless . 4 layers be divided into Area A and Area B. Each area has the same pieces. the heating tubes are evenly distributed on the top and bottom,more closely distributed near the door. There are several thermocouples.equipped with power regulators working independently.
Silicon bags
1.The thickness of the bag is 3 mm, it’s a tear resistant material, and could stand high temperature to 180°C. Quality guarantee period keeps at least 4 years in normal condition. Each silicon bag can lay glass around 36cm thickness, it improves processing efficiency. Compared with the similar suppliers, their bags only can be used for 1.5 year ,because of the poor tear resistant material in it. 2.Equipped with two pieces of Teflon Mesh for each silicon bag, through this way ,not only can protect Silicone Bag from being teared by glass, but also make sure high vacuum rate during processing.
Vacuum system
We adopt wind-cooling vacuum pump, self-developed patent product , working stable. It could continuously work for 24 hours. Vacuum rate reach up to -0.09 — -0.098Mpa. Equipped a buffer tank with each pump, to prevent the air go into the silicone bag when suddenly power off. And we also equipped water vapor separation device with air filter and oil filter, it can separate the water/ air and water/oil to longer the service life of the pump.
Applications

Our machine is used to produce various laminated glass with TPU/SGP/EVA/PDLC film as interlayer , as well as the special materials like marble paper ,silk fabric ,dried flowers and grasses, the processed products mainly apply to architectural decoration,green house,curtain wall,jewelry counter, partition glass wall,glass ceiling/railing ,bullet-proof glasses, etc.
Exhibitions
Packing & Delivery
Wrapped with moisture proof film Wooden case suitbable for container loading
Company Profile
Fangding Technology Co.,Ltd is one of most professional manufacturers of laminated glass production line and new PVB film/TPU film/EVA film. Fangding is the model enterprise in glass machinery processing industry and the sponsor of technical innovation for laminated glass machine and NEW PVB film/TPU film/EVA film. With more than 20 years' experience, providing top grade product and service, creating more value for our customers. Based on reliable quality and professional service, our products have been sold to more than 20 countries and regions, sales volume keeps No.1 in recent 5 years in China. Fangding introduced into TPU film production line, and it is the fourth line in the world, and fills blank market of TPU bulletproof film in China. Our production line can produce TPU film, NEW PVB film and EVA film. Fangding film features high strength, super transparency, strong weatherability, long service life and easy storage, etc. The max width of our TPU film can reach 2500mm, and it is the widest TPU film in the world. It is the best interlayer film for bulletproof laminated glass, safety laminated glass, etc. Fangding is ISO9001-2008 certificated, and laminated glass production line is the first one to get CE certificate in China. Laminated glass machine and interlayer film are exported to more than 20 countries and regions, America, Canada, South Africa, Mexico, Australia, Brazil, Uruguay, Russia, Mongolia, Holland, France, Spain, Portugal, Mozambique, Saudi Arabia, India, Indonesia, Pakistan, Malaysia, Singapore etc. As a leading enterprise in laminating glass deep processing, Fangding is your reliable partner.
FAQ
1. who are we?
We are based in Shandong, China, start from 2003,sell to Domestic Market(41.00%),Western Europe(7.00%),Southeast Asia(7.00%),Eastern Europe(6.00%),Eastern Asia(6.00%),Southern Europe(6.00%),South America(6.00%),Mid East(5.00%),North America(5.00%),Northern Europe(3.00%),Oceania(3.00%),South Asia(2.00%),Africa(2.00%),Central America(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Laminated glass machine,glass laminting machine,glass laminating furnace,EVA film,glass laminating equipment

4. why should you buy from us not from other suppliers?
Laminating machine Double independent system: The heating cabinet is divided into two separate chambers, the upper two layers and the lower two layers can work independently, saving 50% energy, can laminate two different kinds of glass at the same time.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
