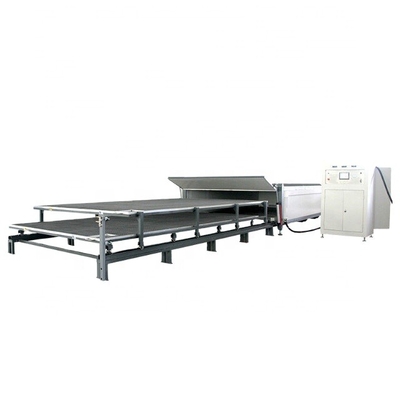

Art Laminated Glass Two Layers Glass Laminated Machine For Laminating Glass Tempered Art Lamination Glass

1 Set
MOQ
$19,000.00(>=1 Sets)
Price
Art Laminated Glass Two Layers Glass Laminated Machine For Laminating Glass Tempered Art Lamination Glass
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Art Laminated Glass, Tempered Laminating Glass, Outdoor Building Laminated Glass, Shower Room, Stair Handrail, Canopy
Showroom Location: Egypt, Canada, Peru, Australia, Morocco
Condition: New
Machine Type: Glass Laminating Machine
Production Capacity: Fast
Voltage: 380V/220V/415V
Power: 33KW
Dimension(L*W*H): 2000*3000
Weight: 2200 Kg
Warranty: 1 Year
Key Selling Points: Long Service Life
Glass Thickness: 3-36mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Pump
Name: Two Layers Glass Laminated Machine For Tempered Laminating Glass
Max Glass Size: 2000*3000
Model: FD-J-2-2
Control System: Seimens Plc
Vacuum Pump: 40
Finished Product Rate: 100%
Certification: CCC/ISO9001/CE
Outside Dimension: 2600*4000*1150
Floor Space: 3700*9000
Production Capacity: 36 Square Meter One Furnace
Basic Infomation
Certification: CCC/ISO9001/CE
Model Number: FD-J-2-2
Payment & Shipping Terms
Packaging Details: plywood packing and open top container glass laminating machine
Supply Ability: 20 Set/Sets per Month
Product Description
Product Description
Product Features
*Name
Glass laminated Machine
*Model
FD-J-2-2
*Processing glass size
2000*3000*2layers
*Rated power
33kw
*Net Weight
2200kgs
*Outside dimension
2600*4000*1150
*Floor space
3700*9000
*production capacity
36 square meter one furnace
Outdoor building laminated glass
Indoor art laminated glass
FEATURES
1.Adopt the unique design structure of double track,which can be used flexibly in single and double stations.
2.Super large cured glass can be formed at one time .
3.Adopt Partition independent heating,heating fast and evenly,compared to similar products ,energy saving 40%-50%
Detailed Images

    • All wiring is put in the plastic pipe. Electrical connection problems have been solved by pull up or plug in the heavy duty connector.In this way, the installation step has been simplified. Maintenance and replacement of the line become easier

Between the PLC control cabinet, the furnace and the glass lifting table,there is a heavy duty connector

  • It is equipped with an independent control cabinet, Siemens control panel, easy to operate

The silicone is 3 mm ,can stand high temperature to 180 degree
With high tear resistance,aging resistance,good sealing,can make sure the laminated glass in a high seal and vacuum rata in processing.
The maximum thickness of machinable glass is 36mm
Vacuum pump is connect buffer tank,can ensure if suddenly power of
It could continuously work for 24 hours,the tank could ensure vacuum for silicone bag and make sure high product yield
The tray is strong and durable, and is equipped with barbed wire mesh to make it stressed evenly and prolong its service life
