Home /Products/Electric Glass Furnaces/Architectures Furniture Automobile Home Appliance Solar Powered Landglass C+ 18m Curtain Wall Large Height Curved AMD Construction Glass Bending Furnace

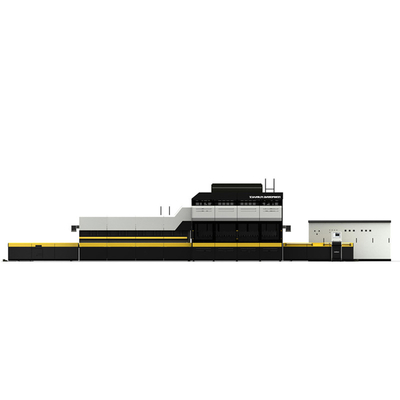

Architectures Furniture Automobile Home Appliance Solar Powered Landglass C+ 18m Curtain Wall Large Height Curved AMD Construction Glass Bending Furnace

1.0 Sets
MOQ
Architectures Furniture Automobile Home Appliance Solar Powered Landglass C+ 18m Curtain Wall Large Height Curved AMD Construction Glass Bending Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Construction Works , Glass Processing Industry
Showroom Location: None
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 30-36 Loads/h
Voltage: 380v
Power: Different By Models
Dimension(L*W*H): According To The Types
Weight: Kg
Warranty: 1 Year
Key Selling Points: Conebent Technology
Glass Thickness: 5mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC
Product Name: Maquina Templadora De Vidrio Curvo Y Lineal
Application: Architectures Furniture Automobile Household Appliance Solar Energy
Heating Method: Jet Convection
Productivity (loads/h): 30-36
Installed Capacity: 800kVA 1000KVA 2000KVA
Glass Thickness: 8-19mm
Tempering Type: Bent Tempering Furnace
Usage: Making Tempered Glass
Color: Grey
Type: Horizontal
Basic Infomation
Payment & Shipping Terms
Packaging Details: Landglass C+ 18m Big size Curved Curtain Wall building glass tempering amd bending furnace Package details: In containers. To be packed in standard export packing-suitable for long-distance shipping. Glass tempering furnace will be packed separately and wi
Supply Ability: 20 Set/Sets per Month machine tempered glass
Product Description
Product Description
horno para vidrio templado curvo maquina templadora de vidrio curvo y lineal
The patented LandGlass ConeBendTM  technology allows for the bending and tempering or glass with different radii on the top and on the bottom of the glass piece, allowing the smooth bending, tempering and cooling of cone shaped glass.
This technology created new possibilities for architectural designs, especially as this technology can bend and temper glass up to 15 meters in length.
Adopt world’s leading forced convection heating approach to process high-quality glass curtain used in architecture;
Optional smart control solutions are available for comprehensive, flexible, and powerful equipment management. High quality and lean production of tempered glass can be achieved based on state-of-the-art technologies.
Architecture
Glass Can Be Tempered:
On-line and Off-line Low-E (E=0.03) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.

    Heating Mode:

    Forced convection heating on the top and bottom.Airstream and Superair are also optional.
LD-C+ ConeBendTM Glass Tempering Furnace
Max. Dimension
thickness(mm)
Min. radius （8mm）
Min.radius （10-12mm）
Min.radius （15-19mm）
LD-C+24120J+
ARC2400x12000
8-19
1800
2000
3000
LD-C+24120J+
ARC2400x15000
8-19
1800
2000
3000
Detailed Images
The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.
Adopt world’s leading forced convection heating approach to process high-quality glass curtain used in architecture;
Glass that can be tempered includes: on-line and off-line coated glass, low-iron glass, silk-printed glass, pattern glass, tinted glass, clear glass etc.
Suitable for bending and tempering jumbo-sized glass products for cone shaped glass construction.
Company Profile
LandGlass Technology Co., Ltd., with the manufacturing plant of 22500 m2 and research base of 6000 m2, is a hi-tech enterprise specialized in developing, manufacturing glass tempering furnaces and tempered vacuum insulated glass. LandGlass' products have been awarded with 3C, CE,UL certification and so on. Moreover, LandGlass owns hundreds of patented technologies and won the National Patent Gold Award for two consecutive years, becoming the first enterprise ever that won a Gold Award consecutively in China.
R&D
After many years of development, LandGlass has set up a R&D facility with a complete range of equipment covering over 20,000 square meters. We have a professional team of researchers and developers characterized by deep technical knowledge and a high capacity for innovation. Because of our commitment to do the best job possible in terms of quality and innovation, we have cooperated with several universities to keep learning, researching and ultimately growing.
Certifications

Product Certification

Up to now, LandGlass has already applied for several hundreds of patents and several tens of PCT patents. Over ten patents among them have already got authorization in America, Germany and Australia, opening a new beginning for glass machinery industry in China. Meanwhile, LandGlass has been granted China Patent Gold Award consecutively in 2012 and 2013, making LandGlass a miracle in China’s glass industry.
Service
Pre-sale Service
LandGlass’s professional engineer’s team will provide you with an all-round and timely service before your choice. It includes:
1. Help the customer choose the most suitable tempering line according to the target market and production volume requirements.
2. Help the customer choose other glass processing machines.
3. Help the customer arrange all the glass processing machines in the workshop.
4. Arrange visits to other glass processing companies.
After-sale Service
LandGlass’s complete and systematic after-sale service can deliver its technology service quickly to reduce equipment malfunction possibility and shorten downtime. It includes:
① Remote diagnosis to provide zero-distance service;
② Establishing localized service agencies to deliver quick service(Former Soviet Union Areas, Southeast Asia, Europe, U.S.A. & Canada, Australia, Korea);
③ Employing foreign employees to get rid of visa restraints;
④ Preventive maintenance service and active communication.
Packing & Delivery
Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.
Glass tempering furnace will be packed separately and it will be assembled together at customer's factory.
Exhibition
Major Exhibition of LandGlass

China Glass
ZAK Glass Technology
Glasstech Asia
GlassBuild America
Fenestration Bau China
Glass Istanbul Expo
GlassTec
Customer and partner
LandGlass around the world
At present, more than one thousand LandGlass tempering furnaces are in operation from North and South America, to Europe, Africa, the Middle East, Asia and Oceania.
The products of LandGlass family have found a good sale in dozens of countries and regions: and the leading glass processing enterprises from all over the world are working together with LandGlass to optimize the quality of safety glass with advanced tempering technology.

LandGlass's marketing networks around the globe can promptly respond to your demand for technological solutions by offering opportunity for visiting the workshop nearest to you or operating the equiipment to gain first-hand and authentic information about the performance of the product.
If you are interested in our glass tempering furnace, please feel free to contact us.
