Features

Specifications

Applicable Industries: Manufacturing Plant, Construction WorksÂ , Glass Processing Industry

Showroom Location: None

Condition: New

Machine Type: Glass Tempering Furnace

Production Capacity: 27-31 Loads/h

Voltage: 380v

Power: Depend

Dimension(L*W*H): According

Weight: Kg

Warranty: 1 Year

Key Selling Points: Energy Saving

Glass Thickness: 12mm

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Marketing Type: Ordinary Product

Warranty Of Core Components: 1 Year

Core Components: PLC

Application: Architectures Furniture Automobile Household Appliance Solar Energy

Tempering Type: Gas Tempering Furnace

Max Loading Dimension: According To Your Requirements

Heating Method: Gas Heating

Productivity (loads/h): 13-16

Product Name: LuoYang LandGlass Gas Heating Toughened Glass Tempering Furnace

Installed Capacity: 300KVA

Min Loading Dimension: 100mm*350mm

Glass Thickness: 3-19mm

Color: Customized

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local ServiceÂ Location: United States, UAE

Certification: CE 3C ISO

After-sales Service Provided: Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support

Basic Infomation

Certification: CE 3C ISO

Payment & Shipping Terms

Packaging Details: LuoYang LandGlass gas heating toughened Glass tempering furnace Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.Glass tempering furnace will be packed separately and it will be assembled together

Supply Ability: 20 Set/Sets per Month Toughened Glass Plant

Product Description

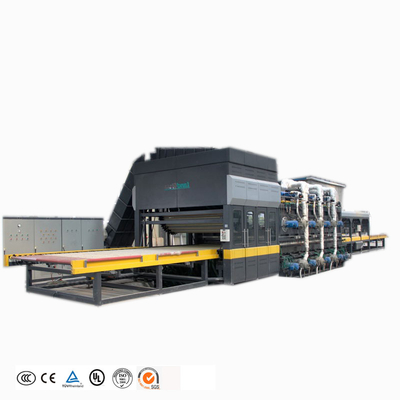

LuoYang LandGlass gas heating toughened Glass tempering furnace

1. The glass sheets are heated by burning gas, lowering dramatically the installed electrical power.

2. The furnace combines the efficient combustion technology and JetConvection Heating Technology. LandGlass proprietary burners guarantee a high speed, efficient combustion. The mature JetConvection Heating Technology ensures even and fast heating.

3. A clean heating environment inside the furnace is guaranteed by isolating the combustion system.

4. Interlock and ignition safety control systems are applied to ensure the complete safety of the system.

Architecture&Furniture, Automobile Industries and Household Appliances, etc.

Glass Can Be Tempered:

On-line and Off-line Low-E (E=0.02) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.

Model	A2442J+	A2450J+	A2480J+
Max.size	2440x4200	2440x5000	2440x8000
Min.size	150x350	150x350	150x350
Thickness range	4-19	4-19	4-19
Productivity(5mm)	18-20(clear glass) 15-18(low-e glass)	18-20(clear glass) 15-18(low-e glass)	18-20(clear glass) 15-18(low-e glass)
Installed Capacity	1000kVA	1000kVA	1600kVA

Detailed Images

The Gas Heating Glass Tempering Furnace is a new type of tempering furnace that heats the glass sheets by burning CNG or LPG. LandGlass designed and developed high efficiency burners to allow the gas to combust fully to create the heat that is then transferred to the glass surface. After the heating process, the hot glass sheets are tempered and cooled down.

The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.

Company Profile

LandGlass Technology Co., Ltd., with the manufacturing plant of 22500 m2 and research base of 6000 m2, is a hi-tech enterprise specialized in developing, manufacturing glass tempering furnaces and tempered vacuum insulated glass. LandGlass' products have been awarded with 3C, CE,UL certification and so on. Moreover, LandGlass owns hundreds of patented technologies and won the National Patent Gold Award for two consecutive years, becoming the first enterprise ever that won a Gold Award consecutively in China.

R&D

After many years of development, LandGlass has set up a R&D facility with a complete range of equipment covering over 20,000 square meters. We have a professional team of researchers and developers characterized by deep technical knowledge and a high capacity for innovation. Because of our commitment to do the best job possible in terms of quality and innovation, we have cooperated with several universities to keep learning, researching and ultimately growing.

Certifications

Product Certification

Up to now, LandGlass has already applied for several hundreds of patents and several tens of PCT patents. Over ten patents among them have already got authorization in America, Germany and Australia, opening a new beginning for glass machinery industry in China. Meanwhile, LandGlass has been granted China Patent Gold Award consecutively in 2012 and 2013, making LandGlass a miracle in China’s glass industry.

Service

Pre-sale Service

LandGlass’s professional engineer’s team will provide you with an all-round and timely service before your choice. It includes:

1. Help the customer choose the most suitable tempering line according to the target market and production volume requirements.

2. Help the customer choose other glass processing machines.

3. Help the customer arrange all the glass processing machines in the workshop.

4. Arrange visits to other glass processing companies.

After-sale Service

LandGlass’s complete and systematic after-sale service can deliver its technology service quickly to reduce equipment malfunction possibility and shorten downtime. It includes:

① Remote diagnosis to provide zero-distance service;

② Establishing localized service agencies to deliver quick service(Former Soviet Union Areas, Southeast Asia, Europe, U.S.A. & Canada, Australia, Korea);

③ Employing foreign employees to get rid of visa restraints;

④ Preventive maintenance service and active communication.

Packing & Delivery

Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.

Glass tempering furnace will be packed separately and it will be assembled together at customer's factory.

Exhibition

Major Exhibition of LandGlass

China Glass

ZAK Glass Technology

Glasstech Asia

GlassBuild America

Fenestration Bau China

Glass Istanbul Expo

GlassTec

GlassTech 2018

China Glass 2019

Customer and partner

LandGlass around the world

At present, more than one thousand LandGlass tempering furnaces are in operation from North and South America, to Europe, Africa, the Middle East, Asia and Oceania.

The products of LandGlass family have found a good sale in dozens of countries and regions: and the leading glass processing enterprises from all over the world are working together with LandGlass to optimize the quality of safety glass with advanced tempering technology.

LandGlass's marketing networks around the globe can promptly respond to your demand for technological solutions by offering opportunity for visiting the workshop nearest to you or operating the equiipment to gain first-hand and authentic information about the performance of the product.

If you are interested in our glass tempering furnace, please feel free to contact us.
