Architecture Customized Forced Convection Flat Glass Tempering Furnace For Low-E Coated Glass Offline

1 Set
MOQ
Architecture Customized Forced Convection Flat Glass Tempering Furnace For Low-E Coated Glass Offline
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Home Use, Construction Works
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 98%
Voltage: 380V
Power: 560KW
Dimension(L*W*H): 18317*5890*3000mm
Weight: 36000KGS
Warranty: 1 Year
Key Selling Points: Automatic
Certification: Ce
After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
Application: Architecture, Furniture, Household Appliance, Shower Room
Glass Thickness: 4-19mm
Glass Can Be Tempered: Low-E Glass,clear Glass,tinted Glass,pattern ,screen Printed Glass
Installed Power: 630KVA
Heating Method: Radiation+Convection
Min. Glass Size: 150mm*300mm
Max Glass Size: 2440mm*3660mm
World Famous Parts: Vesuvius Rollers, Siemens PLC, Siemens Inverter
Basic Infomation
Certification: ce
Payment & Shipping Terms
Packaging Details: seaworthy and some parts packed in wooden cases
Supply Ability: 15 Set/Sets per Month
Product Description
Product Description

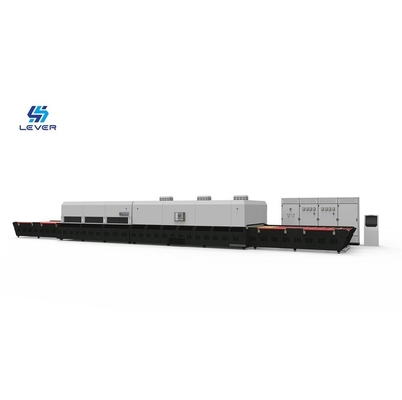

Q Series Forced Fans Convection Flat Glass Tempering furnace

Lever Q series Forced Fans Convection Flat Glass Tempering furnace is a plant specially used to produce the offline coated Low-e flat tempered glass and thermal strengthened glass with high quality and good performance, which mainly used in the fields of architecture (doors, windows), shower room, home appliance, garden fence, elevator, furniture, etc.
Popular Machine model for your option in below, also customized available.
Model
Flat Tempered Glass (mm)
Max. Size (mm)
Min. Size(mm)
Thickness
(mm)
Capacity 5mm
(Loads/Hour)
LV-TF0812
800x1200
100x150
3-19
15-16
LV-TF1225
1200X2500
100x250
3-19
15-16
LV-TF1525
1500X2500
100x250
3-19
15-16
LV-TF1742
1700X4200
100x250
3-19
15-16
LV-TF1836
1800X3600
100x250
4-19
15-16
LV-TF2036
2000X3600
150x280
4-19
15-16
LV-TF2242
2200X4200
150x280
4-19
15-16
LV-TF2436
2440X3660
150x280
4-19
15-16
LV-TF2442
2440X4200
150x320
5-19
15-16
LV-TF2450
2440X5000
150x280
4-19
15-16
LV-TF2860
2800X6000
200x350
5-19
15-16
LV-TF3060
3000X6000
200x350
5-19
15-16
LV-TF3360
3300X6000
200x500
5-19
15-16
LV-TF3380
3300X8000
200x500
5-19
14-15
LV-TF33120
3300X12000
200x500
5-19
14-15
Our Advantages
Our machines' advantage compared to others,
* Multiple belt driving for ceramic rollers.
* Our heating elements adopt the gapless design heating (parallelogram shape), which could make the heating more even and improve
the finished product rate and better product quality.
* We use helical gear type reducer for driving, more reliable & stable running. Others use cheap cycloidal needle type reducer.
* use the same top quality insulating materials for whole heating oven (inner side and outer side), save energy consumption.
* Independent Nozzles for upper quench.
* More air inlets in quenching section, which guarantee more homogeneous air blowing.
Why Choose Us

Luoyang Lever Industry Co., Ltd.

A Professional manufacturer of Glass Tempering Plant.
More than 19 years experiences in this Glass Processing Inudstry.
Experienced R&D, and Installation & Service Engineers & Technicians team.
Lifetime maintenance support.
Detailed Images
Vesuvius Brand Ceramic rollers, the world-famous best brand, Which can ensure the glass was heated and move very smoothly, with its best quality and performance.
Triple Belts Driving, more stable running, even one of them broken, will not affect rollers running.
Stainless steel blowing air butbes to guarantee a cleaning heating chamber.
Same Top quality of insulating materials were used for the whole heating oven inside, can guarantee good performance of insulation effect and energy saving.
Independent nozzles with screw rods. Upper and lower quenching could be moved separately, which is convenient to adjust the flatness of glass.
Powerful Control System with Siemens or Schneider PLC & Frequency Inverter.
