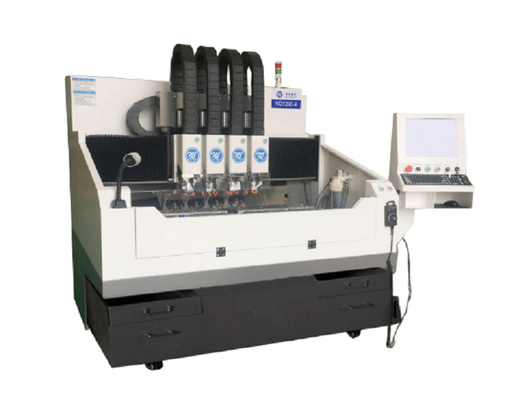

Movable Screen Protector Tempered Glass Cutting Machine Olx ND1200-4 Engraving And Milling ND Group

Feature of Tempered glass cutting machine olx:

1.The Tempered glass cutting machine olx has a user-friendly operating interafce,high processing effeciency thats suitbale for mass prodution.

2.Tempered glass cutting machine olx uses four spindles plus four Z axies motion system, adopt Panasonic servo system , can realize four process processing methods and is equipped with a variety of units fixture that are suitable for different size glass processing.

3.High precision and quality is the machines forte as it has the Jinan Qing(Jinan Black) granite which eliminates deformation,increses high stability and precison.

4. Taiwan C3 grind level ball screw

5. Taiwan P level rails

6. Hpmont inverter*3

7. GFD control system

8. Vacuum filter

9. Industrial personal computer

10. Industrial water chiller

11. Lubrication pump

12. Water air condition

13. Tool sensor

14. Water tank and water pump

15. Hand wheel

16. CE standard 220V 1 phase 50Hz

Application of Tempered glass cutting machine olx:

ND1200-4 is mainly used to machining profile and drilling hole on mobile tempered glass.

The Tempered glass cutting machine olx is firstly packed with plastic sheet for cleaning and damp proofing.

Then put into wooden case for safety and to avoid clashing.

Lastly, the Tempered glass cutting machine olx is transported in the wooden case into the container.

1.12months guarantee of the whole Tempered glass cutting machine olx,we will provide the consumable parts at an agency price when you need replacement .

2.English manual and CD video for machine using and maintaining will be sent to you with the machine

a.Hardware :1year on all parts and labor.
b.Software:Whole life on update for free.
c.Maintenance and technology support:whole life.

3.Our engineer could provid service 24 hours online by Skype,YAHOO,MSN,QQ,WEIXIN,or cellphone, on weekend even on vacation

4.Our engineer could support you technology to your country if necessary.

ND Group is located in Shanghai with the headquarters and R&D department, show room in shenzhen city and two plants in Jinan city.

It is an innovative company that has been well recognised for integrating the excellent design,production and CNC service, specialty engaged in the high precision CNC machine,Granite Mechanical Components and marketing up to 15 years.

With a professional team of more than 100 people, 2 product R&D departments, 10 sales departments,we have grown internationally as we currently provide Machinery and service exported to Europe, America, Australia,Europe, Asia, Africa and other continent countries.

We provide a package solution with one-stop service, such as metal/tempered phone glass/tempered panel glass processing.

ND team aims to help you achieve your dreams by providing you with the best service and high quality machinery.

1 ) What kind of machines we will use for tempered glass production ? Is there any optional machines for better quality ?

A.Cutting Machine

B.CNC Machine

C.Polishing Machine

D.Cleaning Machine

E.Tempering Furnace

F.Film Machine

G.Laminating Machine

H.Labeling Spraying Dyestripping Machine

I.Splitting Machine

Option:

A.PRINTING MACHINE

B.3D BENDING MACHINE

C.DEFOAMING MACHINE

2 ) How many people do we need for operating all machines ?
It's depend on your output/capacity (how many pcs glass) per day.
Usually need 6-12 people.

3 ) How much space do we need for all machines ?
It's depend on your output/capacity (how many pcs glass) per day.
Usually need 500-1500 square meter

4 ) What kind of glasses can we produce ?
Right now, tempered glass projector use 0.33mm thickness glass, and sometime low price glass use 0.4mm thickness glass. Also can produce different brand and model mobile phone glass, such as Iphone/Samsung/LG/HUAWEI/OPPO/VIVO etc.

5 ) When we installed all the machines what will our max produce capacity per day or per hour ?
One set of CNC machine capacity 300-360 pcs per hour, if your people work 16 hours with double-shift per day, will be 4800-57600 pcs per day.
If you need capacity 10,000 pcs per day, will need 2 set of CNC machines and other type machines

6 ) How can be obtain the raw material and what is it's cost ?
We ND Group not only supply machines, also supply raw material, so we can give you raw material.
Usually, my customer purchase raw material from us for three months capacity tempered glass, then they will know every details, can purchase raw material by themself.

7 ) What is it cost to setup all machines ?
About total machine price, it's depend on your capacity per day.
Follow the capacity, will update you how many machines you need. And also include machine and raw material quotation.

8 ) What is raw materials for mobile phone tempered glass ?
0.33MM glass, AB film, Grinding Head, Glass cutting liquid, Acrylic, Polishing powder, Anti-fingerprint Oil etc.
