Gass Processing Safe Glass Laminated Equipment Factory Supplier With High Productivity

1.0 set
MOQ
Gass Processing Safe Glass Laminated Equipment Factory Supplier With High Productivity
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Manufacturing Plant, Retail, Construction Works , Glass Factory
Showroom Location: Egypt, India
Condition: New
Machine Type: Glass Laminating Machine
Production Capacity: Fast
Voltage: 220V
Power: 26kw
Warranty: 1 Year
Key Selling Points: High Productivity
Glass Thickness: 3-18mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, PLC, Pump
Name: Safe Glass Laminated Equipment Factory Supplier With High Productivity
Product Name: EVA Glass Laminating Machine
Function: Types Laminated Glass
Max.Glass Size: 2000*3000mm
Control System: PLC(Mitsubishi)
Heating Method: Forced Convection
PLC: Siemens Brand
Processable Glass Type: Normal Glass
Application Range: Gass Processing
Operation: Automatic Control
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, India
Certification: Ce
After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Video Technical Support
Basic Infomation
Certification: ce
Payment & Shipping Terms
Packaging Details: Wrapped with moisture proof film Wooden case suitbable for container loading
Supply Ability: 30 Set/Sets per Month
Product Description
Product Overview

Fangding Latest 2-Layer glass lamination furnace

The glass laminating furnace adopts the principle of high temperature vacuum extraction.
The film is placed in the middle of two or more pieces of glass. After the high temperature vacuum in the furnace, the film and glass are tightly bonded together to achieve good transparency and no bubbles. And there is no drop after breaking.
Advantage:
 * Independent heating up and down, floor heating distribution, modular control, strong convection circulation of turbine
* A number of patented technologies.The heating system uses a turbine fan and a high-density explosion-proof stainless steel electric heating rod for heating. It is equipped with a temperature sensing device, a modular area heating control, intelligent self-adjusting temperature, fast heating, uniform temperature, and strong turbo fan. Convection circulation to ensure the temperature difference in the furnace within 5 degrees.
* The insulation system adopts seamless processing to minimize heat loss. Compared with similar products and equipment, it can save energy by more than 30%.
* High-performance vacuum system with automatic vacuum pressure holding, stable working around the clock, improving product efficiency and quality.
FEATURES AT A GLANCE
* 99% pass rate
* 50% energy saving
* High efficiency
* PLC control, Simple to operate
* High quality spare parts
* EVA/TPU/SGP film as interlayer
* Rich range of products
* Large size bending glass processing
* No waste when suddenly power off
* Free home installation and training

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No
Item
Data
1
Process glass size
2000*3000mm*2 layers
2
Power
26KW
3
Operating weight
2200KGS
4
Operating weight
90-140℃
5
Operating system
Siemens PLC
6
Glass thickness
2-19mm
7
Dimension
2600*4000*1150mm
8
Floor space
4000*9500mm
9
Production capacity
36㎡/cycle
10
Interlayer
EVA/TPU/SGP film
PRODUCT CONFIGURATION
FANGDING brand vacuum pump
Intelligent PLC control cabinet
Double track for easy push and pull
Company & Exhibition
Fangding Technology Co., Ltd
It is a high-tech enterprise which was founded in October 2003, located in Rizhao city, Shandong, covering an area of more than 20,000 square meters, specializing in developing, manufacturing and selling the laminated glass equipment and the interlayer films, the main products are EVA laminated glass machine, Heat Soak Furnace, Smart PVB glass laminating line and EVA,TPU,SGP films.

On-site processing of laminated glass at the exhibition

The company participated in the world glass industry well-known exhibitions every year, such as Germany Dusseldorf international glass industry exhibition, China international glass industry exhibition, China international window and curtain wall exhibition, Italy Milan international glass industry exhibition, the Middle East (Dubai) international glass exhibition, the United States Atlanta international window and curtain wall exhibition and other exhibitions.
During the exhibition, through the on-site processing of the laminated glass, Fangding presented its unique design style and manufacturing process to the customers!
Successful Project
Extra clear laminated glass processing
Customer in India

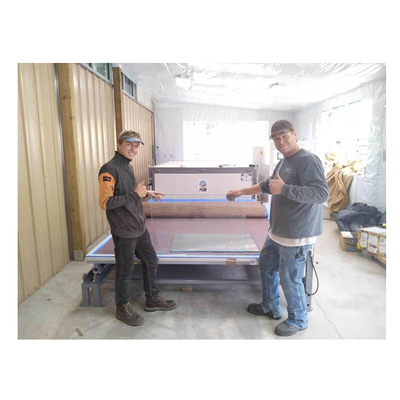

Installation and training in Australia
SIMILAR PRODUCTS
FAQ
Q: Could your machines laminate bent tempered glass?
A: Yes. Our machines can laminate large-size bent tempered glass in one step, which is very easy to operate.
Q: How many stages your machines can set?
A: Normally we set 3 stages. It can be customized for you to 5 stages if needed.
Q: When will your machine ready for delivery after our prepayment?
A: Normally within in 30 days after receiving prepayment.
Q: What about the terms of payment?
A: Normally 30% prepayment, 70% before shipment by T/T. L/C and other terms are also available.
Q: Does your machine have any certifications?
A: Yes, we do. Our machine have got CE certificate of European union, ISO9001 management system certificate. TUV certificate of Germany, PC certificate for Saudi Arabia, CSA certificate of Canada and so on.
Q: Could the laminated glass used for exterior?
A: Yes. The laminated glass with super clear EVA can be totally used for exterior.
Q: How to operate the machine? Is it difficult?
A: No, our machine is very easy to operate. The machine will work automatically after you setting the parameters through the PLC touch screen. We send you operating manual with the machine, we also have video for operation for your reference.
