Glass thickness range : Tempering : 4 - 19 mm with tolerance +0.2/-0.2mm
Glass size:
Flat tempering Glass size:
Max flat glass size : 2,440 mm x 4,400 mm 5-19mm
Max flat glass size : 2,440 mm x 1,800 mm 4mm
Min glass size : 100 x 300 mm
Bend tempering Glass size:
Max glass size: 2,440mm×2000mm(Arc length)
Min glass size: 500mm×600mm(Arc length)
Bend tempering glass thickness range: 5mm~19mm
R≥850mm(5～6mm)
R≥1000mm(8～10mm)
R≥1500mm(12～19mm)
Finished product rate: over 5mm not less than 98%.
Productivity / Process cycle time: 5 mm 16-18 loads / hr
Glass size:
Flat tempering Glass size:
Max flat glass size : 2,440 mm x 4,400 mm 5-19mm
Max flat glass size : 2,440 mm x 1,800 mm 4mm
Min glass size : 100 x 300 mm
Bend tempering Glass size:
Max glass size: 2,440mm×2000mm(Arc length)
Min glass size: 500mm×600mm(Arc length)
Bend tempering glass thickness range: 5mm~19mm
R≥850mm(5～6mm)
R≥1000mm(8～10mm)
R≥1500mm(12～19mm)
Finished product rate: over 5mm not less than 98%.
Productivity / Process cycle time: 5 mm 16-18 loads / hr
Installed power:
Heating :670 kWDrives : 21 kW
Convection blower:3KW x4=12KW upper
Convection blower:0.75KW x4=3KW bottom
Flat Quenching : 250KW
Power requirement: Transformer no less than 630KW
Note: The power capacity may be different and should be referring to the actual
Suitable glass sorts:
Low-e glass
Clear float glass
Coated glasses
Patterned glass
Tinted glass
Low-e glass
Clear float glass
Coated glasses
Patterned glass
Tinted glass

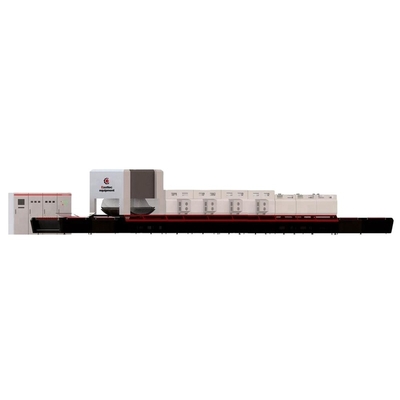

Supply Scope
-- Loading table
-- Bend Quenching section
-- Heating section (furnace)
-- Flat Quenching section
-- Unloading table
-- Associated electrical and control equipment
-- Remote diagnosis system
-- Control terminal
--250KW inverter*1
-- Loading table
-- Bend Quenching section
-- Heating section (furnace)
-- Flat Quenching section
-- Unloading table
-- Associated electrical and control equipment
-- Remote diagnosis system
-- Control terminal
--250KW inverter*1
Machine can be customized, contact customer service for details.
