Hotels PVB / EVA Oven Laminated Glass Glass Laminating Production Line

1 Set
MOQ
Hotels PVB / EVA Oven Laminated Glass Glass Laminating Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant
Showroom Location: Turkey, United Kingdom, United States, Italy, Brazil
Condition: New
Machine Type: Glass Laminating Machine
Production Capacity: 150-550sqm/day
Voltage: Customized
Power: 119KW
Dimension(L*W*H): 12000*3300*2000mm
Weight: 20000 Kg
Warranty: 1 Year
Key Selling Points: Easy To Operate
Glass Thickness: 30mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC
Biggest.glass Size: 3700*2500mm
Biggest Glass Thicknes: 30mm
Control System: PLC With Touch Screen
Temperature Accuracy: ±2℃
Temperature Range: House Temperature---150℃
Transmission Speed: 5M/Min-10M/Min
Working Table Height: 850±10mm
Dimension: 12000*3300*2000mm
Key Words: PVB Glass Laminating Machine
Basic Infomation
Payment & Shipping Terms
Packaging Details: Suitable for shipping by container
Supply Ability: 10 Set/Sets per Month
Product Description
Product Overview

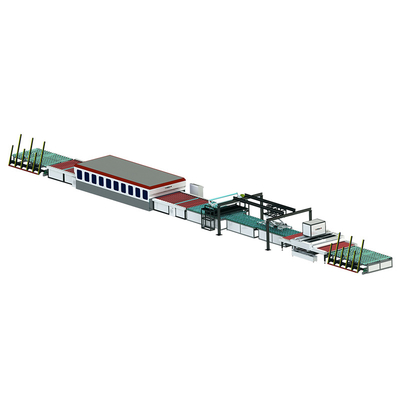

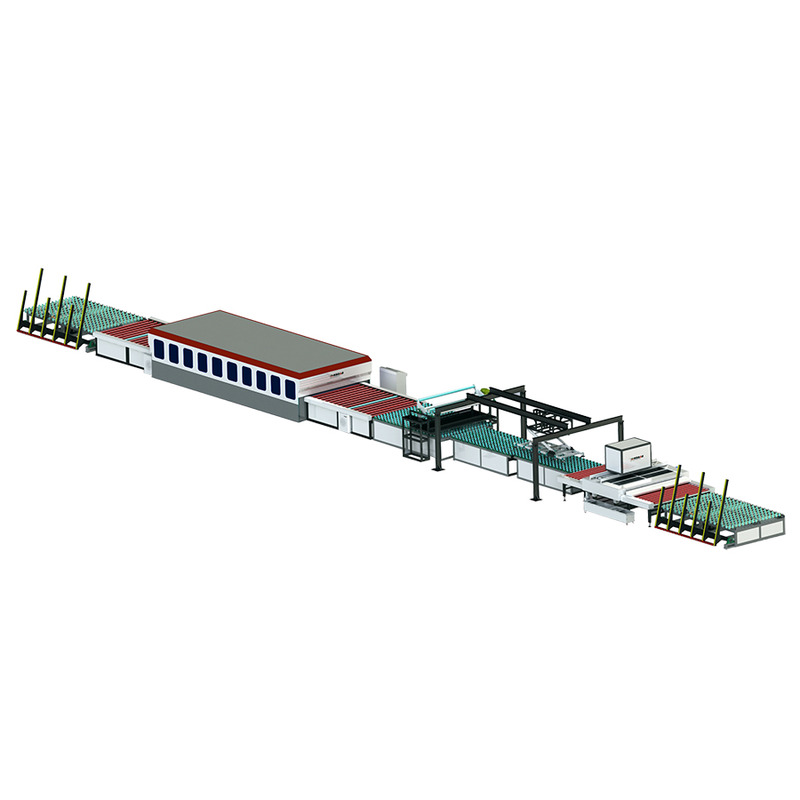

Glass laminating line

The Glass laminating line well works with PVB film with high production capacity, the glass would be conveyor to furnace continuously, and around 30 minutes for every batch (3mm glass +PVB film +3mm glass), so that is able to have bulk production or single pieces, as well as fit for tempered and float glass lamination.
It will be a tend for producing PVB glass laminated without autoclave, which is more safe and efficient.
FEATURES AT A GLANCE
Glass laminating line includes
Glass washing machine
Glass assembly equipment
PVB glass laminating machine
It is the latest solution for laminated glass production without autoclave. The line combined with automatic glass loading
machine, glass washing machine, assembly machine, PVB film holder, PVB/EVA glass laminating machine, tilting unloading machine.
Glass washing machine
Glass assembly equipment
PVB glass laminating machine
Machining Center
All metal sheets used on the equipment are processed by laser cutting, the main body of the machine is welded with high-quality
steel and processed by CNC gantry milling, and the mechanical parts are processed by CNC machining center
The finished glass is same or even better than autoclave did, and could be applied in many industries, likes architecture,
industry, electronics, furniture, etc.
PRODUCT SPECIFICATIONS
No
Item
Data
1
Film
PVB film
2
Max. glass size
3700*2500mm
3
Cycle time
30minute/cycle
4
continued working
yes
5
Autoclave
no need
6
glass
tempered glass, float glass
PRODUCT CONFIGURATION
PVB film
No need autoclave
customed voltage
SALES AND SERVICE NETWORK
Sagertec provide high quality PVB laminated glass machinery and outstanding customer service, we have gained a global sales network about 75 countries reaching USA, Germany, France, Italy, UK, Australia, Brazil, Republic of Venezuela, Argentina, Czech, Republic of Costa Rica, Columbia, South Korea,Thailand,United Arab Emirates,Turkey, Kenya, South Africa etc.
Sagertec has good relationship with every customer.
Successful Project
Shipping to Switzerland
customer is in factiry
PVB oven in customer's factory
SIMILAR PRODUCTS

EVA glass laminating machine

The model is SG-3000-4SD Dual, which is a 4 layers EVA glass laminating machine for large capacity.

EVA laminated glass machine

This is a 1 layer EVA glass laminating machine on model SG-3000-1DD that is a basic model for starting the laminating project.

Glass washing machine

This is a horizontal glass washing machine, with Max. glass width 2500 mm
Company Profile
Sagertec. Established in 2008, a professional manufacturer and exporter that is concerned with design, development and production of glass processing machinery.
Main Products including: PVB glass laminating machine, EVA glass lamination furnace, PVB/EVA glass lamination line, glass edge polishing machine, glass washing machine , glass drilling machine etc.

Brazil Team

Service Team

.
Our business philosophy is "KEEP INNOVATION, SERVICE GLOBAL. Being provide qualified and advanced equipment and solutions for our clients in glass industry is our mission".
