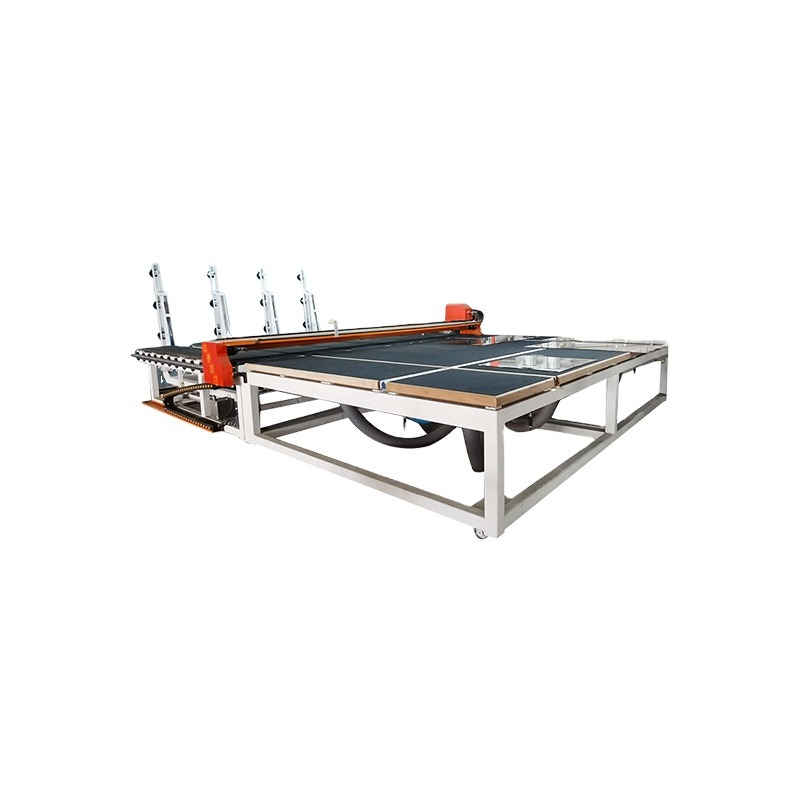

Hotels Glass Cuttong Automatic Glass Loading Machine JLQG-3826 Cut Breaking Table Machine

1 carat
MOQ
Hotels Glass Cuttong Automatic Glass Loading Machine JLQG-3826 Cut Breaking Table Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Printing Shops, Construction Works , Energy & Mining, Advertising Company, Electronic Glass
Showroom Location: None
Condition: New
Machine Type: CNC Glass Cutting Machine
Production Capacity: 3000square/tian
Voltage: 220V / 380V / 415V
Power: 13KW
Dimension(L*W*H): 13600mm*3000 Mm*900
Weight: 150000 Kg
Warranty: 1 Year
Key Selling Points: High-accuracy
Glass Thickness: 3-19mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Other, Pump
Certification: Ce
Boundary Dimension Of Equipment: 13600mm*3000 Mm*900
Table Height: 900mm ± 50mm
Cutting Speed: 3-70m / Min
Linear Parallelism: ≤± 0.20m M/m
Diagonal Accuracy: ≤ ± 0.25m M/m
Actual Power Of Equipment: 3kw
Service Supports: Online Support, Video Technical Support
After Warranty Service: Field Maintenance And Repair Service
Basic Infomation
Certification: ce
Payment & Shipping Terms
Packaging Details: plastic paper or strong package or other package method according to customer requirement
Supply Ability: 20 Set/Sets per Month
Product Description
Product Description
The working principle of the  automatic glass cutting machine is to transport the cut glass from the conveyor belt to the workbench. First, the glass position is aligned mechanically. The cutting head with diamond wheel moves along the x-direction and Y-direction respectively by program control to cut the substrate. CNC motion control card is used in the control part of the machine, and advanced AC servo is used in the drive part
Equipment name
 glass automatic feeding and cutting machine
Model
JLQG-3826
Boundary dimension of equipment
13600mm*3000 mm*900
Maximum size of cutting flat glass
3600*2400mm
Cutting thickness
3-19mm
cutting speed
3-165m / min
Direction for use
使用说明
The  utility model relates to a glass upper slice cutting integrated machine, which is characterized in that the whole machine can be moved in the workshop, the cutting function + upper slice function are combined on a machine platform, and the air floating sheet breaking platform is additionally connected. The glass automatic lamination mechanism is composed of elevator, turning boom, turning boom shaft, turning boom, driving shaft of boom, main and auxiliary connecting rods, suction cup components and limit switch; the cutting lamination workbench composed of upper arm, cutting crossbeam and conveying platform has longitudinal moving guide rail and rack at the front and rear sides of the rack, and main driving wheel, servo motor and display are installed on the side force plate There are axial slide rail, SBR type guide rail, through shaft, traverse rack and automatic cutting mechanism of cutting head. This machine integrates multi functions, saves people and money, and is suitable for small and medium glass processing enterprises
Detailed Images
The  equipment is suitable for home appliance glass, mosaic glass, handicraft glass, solar energy glass, furniture glass, picture frame glass, cosmetic mirror glass, LCD glass, automobile and motorcycle rearview mirror glass, electronic glass, mobile phone toughened glass film, bathroom glass, door and window glass, gem glass, mirror matching glass, background wall glass, safety sign glass, LED light guide plate diffusion plate glass And other glass industries
Size Information
Specifications and  dimensions of the equipment can be customized according to customer requirements
Model specification
JLQG-2620
JLQG-3826
JLQG-4028
Size of processed glass
2440*1830mm
3660*2440mm
3800*2600mm
Thickness of processed glass
2-19mm
3-19mm
3-19mm
Packing&Shipping
plastic  paper or strong package or other package method according to customer requirement
Company Introduction
Foshan Jingling Glass Machinery Co., Ltd. is a comprehensive enterprise which integrates glass processing, manufacturing and import and export trade.The company mainly produces and sells the following products:
Glass automatic CNC cutting assembly line, glass tempering furnace, multi-functional automatic cutting machine, engraving machine,glass mosaic processing machinery and equipment, mirror glass processing machinery and equipment, precision engraving machine,gemstone glass processing machinery and equipment, glass rounding machine (circular special-shaped machine, single-end rounding machine, double-end rounding machine, three-end rounding machine) Machine, sleeve rounding machine), NC special-shaped glass cutting machine, glass upper and lower tablet machine, glass rounding machine, glass cleaning machine, glass edge grinder, glass tools, glass pliers, cutting cutter box, knife clamp and other glass machinery accessories
The company has a high-quality technical team, in the quality of excellence, from the quality and quality of service has won user recognition and good reputation. Our service purpose is: "the same product quality, preferential price, the same product price,thoughtful service", "quality for survival,
reputation for development, market development, customer-centered" sincerely look forward to your inquiry on the principle of fairness, justice, reciprocity and mutual benefit. Your success and satisfaction will be our wish.

Our Services & Strength

Comprehensive service  satisfaction guarantee Jingling Glass Machinery Co., Ltd. is committed to providing high-quality and perfect after-sales service, putting customer satisfaction in the first place. We always believe that only the success of our customers can guarantee our success. So jingling provides customers with perfect support and services, so that customers can focus more on developing their own business and achieve greater success. Jingling glass machinery company promises: Foshan jingling glass cutting machine, if there are quality problems, you can get satisfactory guarantee services, so that you have no worries! ◆ one year warranty: Foshan jingling glass cutting machine is warranted for one year from the date of purchase (consumables are not warranted), except for artificial damage ◆ lifelong maintenance: if there is any problem with the machine after use, please contact us at any time, and we will deal with it in time. ◆ professional guidance: according to the needs of customers, our technical team provides perfect technical support and solutions. ◆ regular visit and return visit: we will visit customers regularly to understand product quality and service problems, listen to customers' opinions, and help customers solve problems in practical application. ◆ telephone follow-up: we have a customer service specialist to conduct telephone follow-up to inquire about the solution of customer demand and the satisfaction of service. Q: how about your service ? ◆ A: 1: we will reply your message in 1 hour from Ali-trademanager and within 8 hours if by email 2: we will send professional engineer to your working site for equipment installation, adjustment, operation training and repairing. 3: 24 hours online after-sales service Q: Are you Original Equipment Manufacturer ? A: Yes, we are professional Original Equipment Manufacturer and we honestly welcome you to our factory to check the quality. Q: Can you make the product as per client's requirement? A: Yes, we can make customized orders according your special needs. Any individual appealis welcome here. Q: Do you guarantee the quality of your machines? Answer: every product of Foshan jingling glass cutting machine has been tested and put into production for many times to ensure the quality is qualified
FAQ
reminder:
The company is a professional glass processing equipment manufacturer, so there are many types and models of products. At present, only some products are uploaded. The product you see may not meet your needs. But you can provide the requirements and information you need by e-mail or online consultation. We provide you with matching product models, prices and technical solutions free of charge. Looking forward to your inquiry!
