Home /Products/Hardening Tempering Furnace/Factory HN Low-e Flat Building 5mm Window Glass Tempered Glass Horizontal Architectural Glass Machine

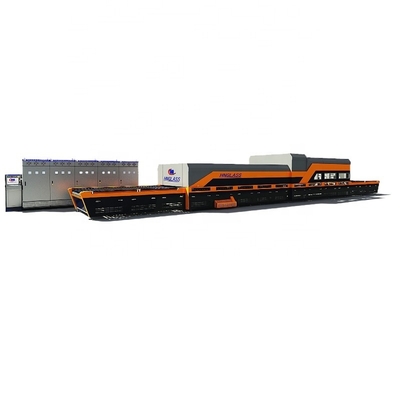

Factory HN Low-e Flat Building 5mm Window Glass Tempered Glass Horizontal Architectural Glass Machine

1.0 set
MOQ
Factory HN Low-e Flat Building 5mm Window Glass Tempered Glass Horizontal Architectural Glass Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Construction Works , Glass Processing Industry
Showroom Location: Turkey, Saudi Arabia
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 18 Batch/h
Voltage: 220/380/440V
Power: Different By Types, 300Kw
Dimension(L*W*H): Depending On The Models
Weight: 30000 Kg
Warranty: 2 Years
Key Selling Points: Energy Saving
Glass Thickness: 4-25mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 2 Years
Core Components: PLC, Heating Element
Heating Method: Radiation+Convection
After Warranty Service: Maintenance And Repair Service
Local Service Location: UAE
Installation: Free Installation, Commissioning And Training
After Sales Service Provided: Engineer All Year In Saudi Arab
Certification: CE 3C ISO
Basic Infomation
Certification: CE 3C ISO
Payment & Shipping Terms
Packaging Details: Standard Packing
Supply Ability: 50 Set/Sets per Year
Product Description
Product Description
Working Factory
More than 30,000 Square meter working factory. Capacity: more than 50set per year
Specification
Model
Max Glass Size（mm）
Min Glass Size（mm）
Thickness（mm）
Productivity
（Batch/hour）
Installation Power（KAV)
HNA1225Q
1250×2500
100×250
2.5-19mm
25
200
HNA1236Q
1250×3660
100×250
2.5-19mm
25
300
HNA1636Q
1600×3660
100×250
3-19mm
22
400
HNA2030Q
2000×3000
100×250
4-19mm
18
400
HNA2436Q
2440×3660
200×300
4-19mm
18
500
HNA2442Q
2440×4200
200×300
4-19mm
18
550
HNA2460Q
2440×6000
200×400
4-19mm
18
800
HNA2860Q
2800×6000
200×400
5-19mm
16
900
HNA3380Q
3300×8000
250×500
6-19mm
14
1500
HNA33160Q
3300x16000
250×500
6-19mm
14
2800
Company Profile
Glass Can Be Tempered: Building glass, home applicant glass, decoration glass, Low-E glass, furniture glass, etc
Turbo Blower Advantage: 1.Better finished glass quality compared compressed air. 2.Longer life span compared common blower. 3.Energy saving. 4.Easy controlling

Features of the glass tempering furnace.

Features at glance: 1.Super Flatness: 0.05/300mm Knife Ruler 2.Spotless glass: 20pieces glass folded without spot 3.Cross bending, Length bending, double curved bending, Reverse bending, Shaped bending 4.Turbo blower convection which can save 30% power. 5.Easy Operation 6.Spaceless heating wires

Supply Scope:

1. Loading table 2. Heating section
Force convection system as option ( Compressed air or Turbo Blower )
Vesuvius ceramic roller as option 3. Flat tempering & cooling section 4. Bent tempering & cooling section 5. Unloading table 6. Blower system with Frequency converter 7. Electrical & control system  (Siemens PLC, Computer, etc) 8. Technical documents
Bi-Directtion Flat & Bent Glass Tempering Furnace

Double Chamber Glass Tempering Furnace

Continuous Glass Tempering Furnace

Radiation Flat Glass Tempering Furnace

Soft Roller Length Bending Glass Tempering Furnace

Mould Bending/Car glass Tempering Furnace
