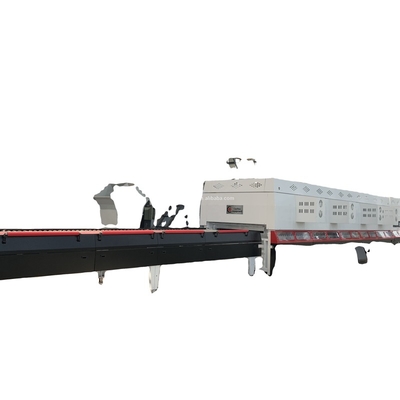

Building material stores glass making machine tempered machine glass making furnace for tempering glass shipping and handling - FA1566

1.0 Sets
MOQ
Building material stores glass making machine tempered machine glass making furnace for tempering glass shipping and handling - FA1566
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works , Glass
Showroom Location: None
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 6mm 14-15 Load/h
Power: 800KW
Dimension(L*W*H): 31000mmx2300mmx2300mm
Weight: 20000 Kg
Warranty: 1 Year
Key Selling Points: Energy Saving
Glass Thickness: 2.8-19mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor, Gear, PLC, Gearbox
Color: Customers' Request
Max Glass Size: Customers' Request
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: Seaworthy packing suitable for long distance
Supply Ability: 5 Set/Sets per Month
Product Description
Product Description
Glass size:
Max flat glass size : 1,500 mm x 1,200 mm 2.8-3mm
Max flat glass size : 1,500 mm x 6,600 mm 4-19mm
Min glass size : 200 x 300 mm

Glass thickness range : Tempering :2.8 - 19 mm
Finished product rate: over 5mm not less than 98%.

Installed power:
Heating : 680 kW
Drives : 15kW
Quenching : 315KW +200KW
Power requirement: Transformer no less than 800KW
Note: The power capacity may be different and should be referring to the actual designing power drawing which will be supplied after signing the contract.

Productivity / Process cycle time:


Thickness(mm)
Common Flat Glass (sq/day)
( based on 22 hours/day)
Remark
2.8
6000
Productivity of low-e glass is 60%-80% of common float glass.
3
5500
4
3800
5
2900
6
2200
8
1700
10
1300
12
1000
15
750
19
500










Standard structure steel of 8mm thickness and 135*135 strong square steel ensure the long using life of the whole furnace.




The ceramic roller seal with super strong thermal resistence blocks. All these blocks are specially customized On one hand, it's well sealed and on the other hand they are strong like bricks and after long time using, theywon't crush.








Multi-language operation page can be selected, simple and convenient
Detailed Images
Related Products
Company Introduction
Luoyang Easttec Glass Automation Equipment Co., Ltd. established in 2006, is a high-tech enterprise specializing in the
design,manufacture and sales of glass thermal processing equipment. Easttec has a group of professional technicians engaged in glass deep-processing equipment design and manufacture for more than twenty years. And with rich experience, ongoing innovation,exquisite design, and the advantages drawn from Eupopean companies, the company manufactures new glass processing equipment with excellent quality, reliable performance and reasonable price.
FAQ
If you have other size requirements, can I know your maximum glass size and glass thickness range? Therefore, I can reference the appropriate model for you and send the model details. Welcome to visit our website: www.easttecglass.com for more information about us.
Look forward to your inquiry
Daniel Lee
