Product Number | HC-236 | HC-368B | HC-230 | HC-368 | ||||

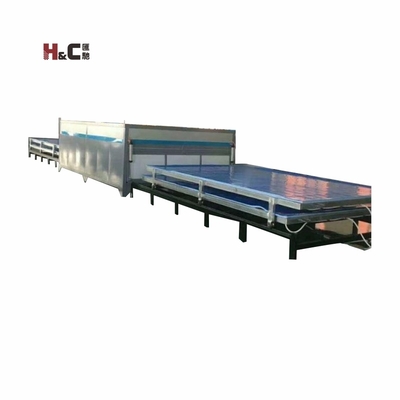

Product Name | Double-layer glass laminating furnace | Four-layer glass laminating furnace | Five-layer laminating furnace | Six-layer glass laminating furnace | ||||
Model Features | double-station | single-temperature zone | single-station glass | double-temperature zone | ||||
Power Supply | Three-phase ac 380v | Three-phase ac 380v | Three-phase ac 380v | Three-phase ac 380v-450V | ||||
The Total Power | 52KW | 42KW | 50KW | 60KW | ||||
Biggest Process Glass Size | 2440*3660mm | 1830*3200mm | 2000*3000mm | 2440*3660mm | ||||
Equipment Appearance | 4600*3050*1300mm | 8400*2250*1810mm | 3400*2350*1960mm | 13000*4500*2100mm | ||||
Vacuum Bed Sets | Four sets | Four sets | Five sets | Six sets | ||||
Net Weight | 3000kg | 5000kg | 4000kg | 4500kg | ||||
Heating Method | Up and down heating wind circulation | |||||||
Vacuum Pump | 40L | |||||||
Bed Frame | 40*80*3mm square tube | |||||||
Maximum Glass Thickness | 50MM | |||||||
Electric Box | The Omron PLC/Korea LG AC contactor/Japan Omron relay/hanging electric box | |||||||
Insulation Materials | Aluminum silicate fiber + insulation cotton | |||||||
Features | Double door double station high efficiency | |||||||
Fast heating up, low heat loss | ||||||||
Automated one-key operation | ||||||||
Leakage protection device | ||||||||
Note: the equipment can be tailor-made according to customer’s requirements | Note: the equipment can be tailor-made according to customer’s requirements | |||||||
