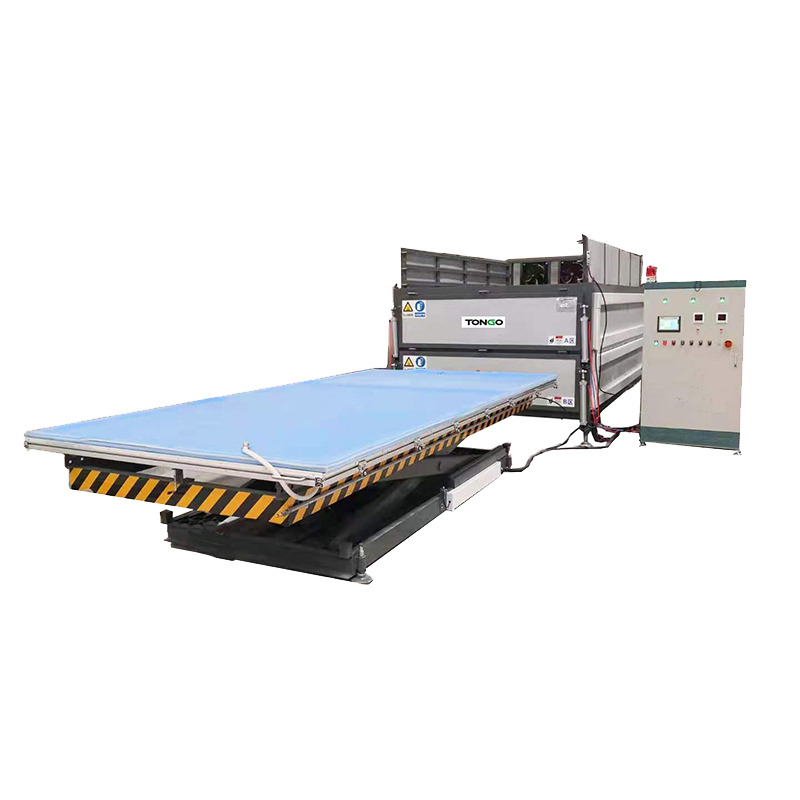

Architecture Eva Pdlc Sgp Bending Flat Laminated Glass Machine Glass Laminating Furnace

Architecture Eva Pdlc Sgp Bending Flat Laminated Glass Machine Glass Laminating Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Payment & Shipping Terms
Product Description
PRODUCT SPECIFICATIONS
Model Name
4 layers laminated glass machine
Machine Frame
100*100*10mm hot dip galvanized Angle steel
Rated Power
16-30KW
Processing glass size
Max:2500*4500mm/3660*2440mm
Max glass thickness
60mm
Floor Space
4000*8500mm
Working Temperature
90--140 degree
Exterior Dimension
2400*3440*1100mm
Product Overview
FEATURES AT A GLANCE
ADVANCED VACUUM SYSTEM
FULLY AUTOMATIC
THREE TIMES PRODUCTION CAPACITY
EASY OPERATION AND MAINTENANCE
PRODUCTION YIELD MORE THAN 99%
BRAND COMPONENTS

Right elevation
Left elevation
Front elevation
PRODUCT CONFIGURATION
Intelligent Simens PLC control cabinet with brand components.
External wire connected is convenient for service and maintenance.
carpet heating, greatly improve the heating time, improve production efficiency, save electricity.
wind-cooling vacuum pump, Germany design, working stable and structure beautiful. Vacuum rate reach up to -0.095—-0.101Mpa. Equipped with vacuum buffer tank, even in case of interruption of electricity supply, the tank could ensure vacuum for silicone bag and make sure high product yield. Panasonic vacuum gauge with high quality.
Our four layers laminated glass machine are equipped with automatic lifting platform. It use straight ladder design, each layer can stay at will, do not need to stop layer by layer, with wireless control system,you can control the platform easily.
High tear resistance Silica Gel Plate (Lamination Blanket),3mm thick, each layer of Silica Gel can put glass in around 36mm thickness and it improves processing efficiency. Aluminum nozzle for air extraction is added.Ensure the vacuum rate inside the bag,improve product yield.
Siemens display screen.
Top cooling system,improve the efficiency.
Foundation bolt could adjust the balance at your will.
Successful Project
Our Company
Rizhao Tongo Glass Machinery is a professional designer and manufacture during glass industries.Including glass laminating machine,EVA film and other glass processing machinery.such as Such as glass edging machine,glass washing machine,glass laminating machine ,glass manipulator etc.
In the glass machine field,our company have professional technical team who can provide you with professional service and we can update our product for you according to your opinion.We design, develop, and build glass machinery for clients around the world.Through creativity, innovation, and reliability we have become a leader in our industry.Since the majority of our work is referral-based, our success depends on our reputation for excellence. From the first conversation about your project until the day your finished glass machinery installed, our goal is to exceed your expectations.
Quality is our culture,you are warmly welcome to our company for a visit.
Application
Our machine could produce many kinds of safety laminated glass:
1.outdoor architectural laminated glass:Float laminated glass,arc laminated glass,tempered laminated glass,etc.
2.High grade indoor decorative laminated glass :silk/cloth laminated glass,marble laminated glass,real flower laminated glass etc.
3.New energy laminated glass,such as LED laminated glass,PDLC laminated glass,solar panel laminated glass etc.
Bending glass lamination
PDLC film Lamination
Bulletproof glass lamination
Silk lamination
Magic film lamination
Glass curtain wall
LED laminated glass
Colored laminated glass
Painting laminated glass
Packing &Delivery
The machine will be packed with plywood suitable case and Secure with wire rope.
FAQ
1.Could your machine laminate bending laminated glass?

Yes. Our laminated glass can laminate large size bending laminated glass in one step. Very easy to operate.

2.How many stages your machine can set?

Normally we set 3 stages. It can be customized for you to 10 stages.

3.When will your machine ready for delivery after our prepayment?

Normally within 25 days.

4.What about the terms of payment?

Normally 30% prepayment, 70% paid before delivery.

5.The Pros and Cons of Laminated Safety Glass

Laminated glass is basically a glass sandwich. It is made of two or more plies of glass with a vinyl interlayer between
(sandwiched, if you will, as in a car’s windshield). The glass will tend to stay together and case one in is broken – thus
qualifying as a safety glazing material. The other key advantage to laminated glass is that it blocks 99 percent of the UV-light transmission, has sound reduction properties,it can be cut and its edges can be polished after laminating, and lead times are generally faster because most glass shops stock laminated glass. Certain thicker, multilayered forms of laminated security glass can even qualify as burglar- and bullet-resistant glass. Because laminated glass holds up to impact better than other types of glass, this is what is used in modern windshields. The sandwiched interlayer gives the glass structural integrity and keeps it from shattering apart like tempered glass might. This is key for effective airbag deployment and helping to keep occupants inside the vehicle in the event of a crash.
